X350 Compost Extractor

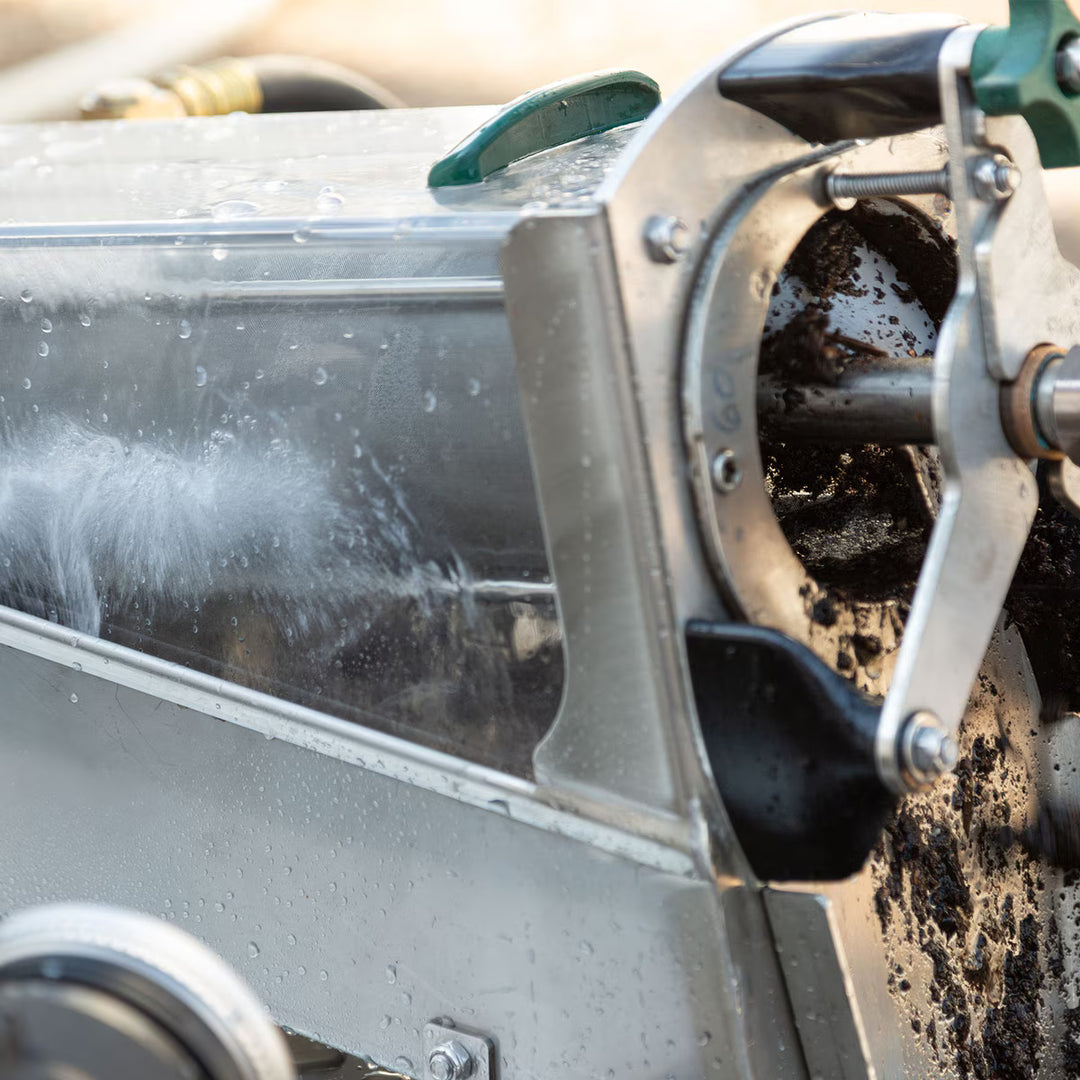

The X350 uses the same stepped-auger water-jet extraction system as the full X-series, scaled to a 2" water supply camlock for higher flow rate. The booster pump includes an adjustable pressure regulator, giving operators direct control over extraction pressure to tune output for different compost feedstocks and application targets.
The 36-gallon hopper extension is available and provides approximately 1 hour of continuous run time. With the timer-ready solenoid and the hopper extension, operators can run fully automated extraction batches. The solenoid also allows mid-batch pauses: cutting power holds the compost in place, and the batch can be resumed exactly where it left off.
KEY FEATURES
- Produces up to 1,000 gallons of extract per hour, the highest output in the X-series
- Timer-ready solenoid: water shuts off automatically when power is cut, making it compatible with an outlet timer
- Booster pump with adjustable pressure regulator for tunable extraction performance
- Patent-pending stepped auger design prevents extraction chamber overloading
- Optional 36-gallon hopper extension for ~1 hour of fully automated, unattended operation
- Mid-batch pause and resume capability via solenoid shutoff
- Slip clutch motor protection in the event of an auger jam

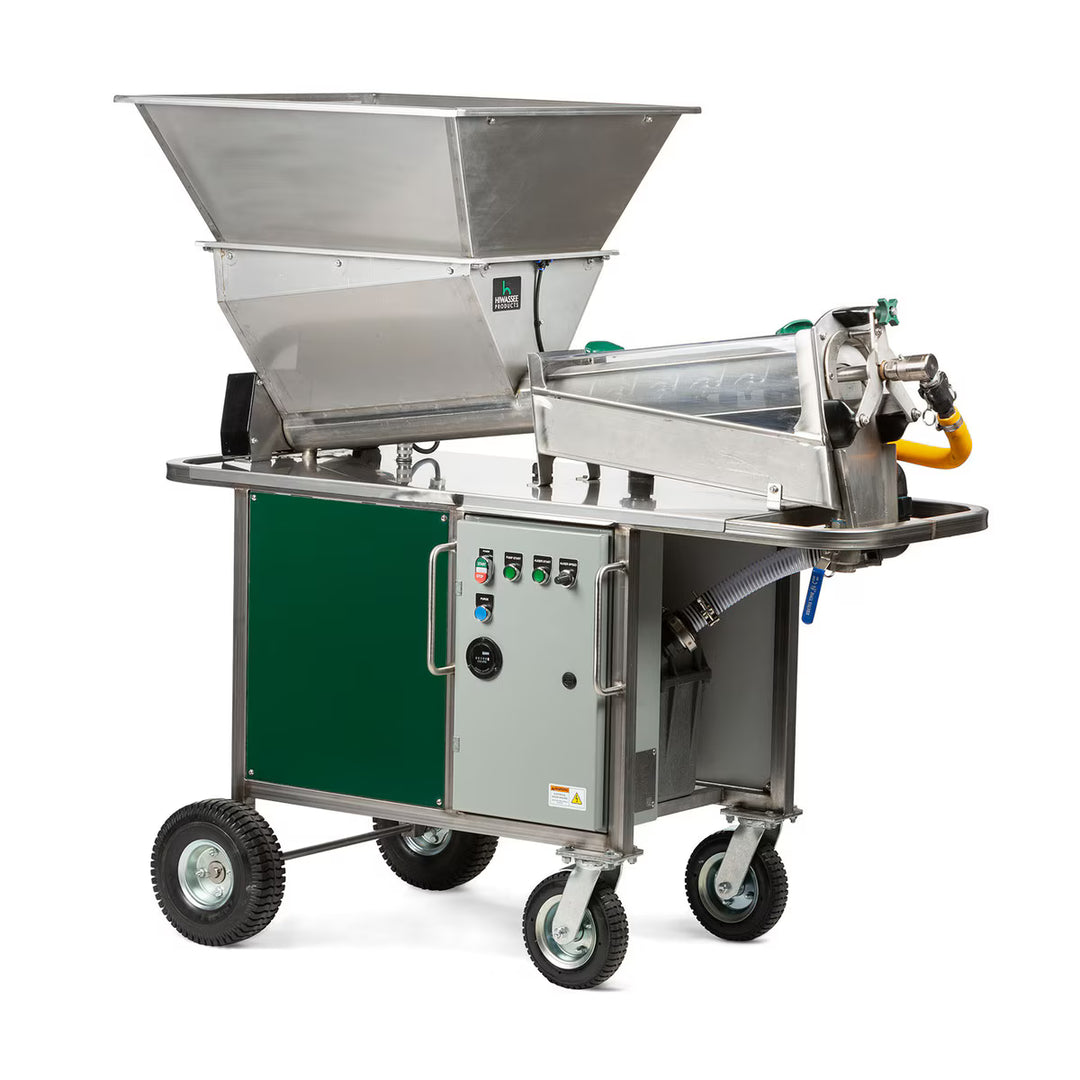

- Choice of a stationary stand or cart with heavy-duty locking casters (solid/never-flat rubber)
- Interchangeable mesh screens: 40, 50, 60, or 80 mesh
NOTE: Devices are not stocked domestically and currently have a 3-month lead time. Pricing may vary depending on exchange rate and sea freight costs. Exact pricing can be confirmed by request and/or at the time of order.
Specifications
Inlet and Discharge hose connection sizes.
- Water supply connection: 2" female camlock.
- Extract discharge connection: 2" male camlock.
Hopper Options
- Small hopper: 12 gal capacity
- With hopper extension: 36 gal capacity
Electrical Supply
- 120 VAC, 1PH, 60 Hz
Cart and Stand Options
- With small hopper: L 58" x W 28" x H 48", weight
- With hopper extension: L58" x W 28" x H 58"
Wheels (cart option only):
- Fully locking 8" casters in the front, 10" fixed wheels in the back. Wheels are solid (Never Flat) rubber.
Cleaning spray hose
- Optional on all models and is available separately.
Product Manual
Learn more about Liquid Compost Extract
COMPOST EXTRACT RESOURCE GUIDE.PDF
Support
Schedule a free call with our TECHNICAL SUPPORT team if you would like more information on which extractor is best for you.
